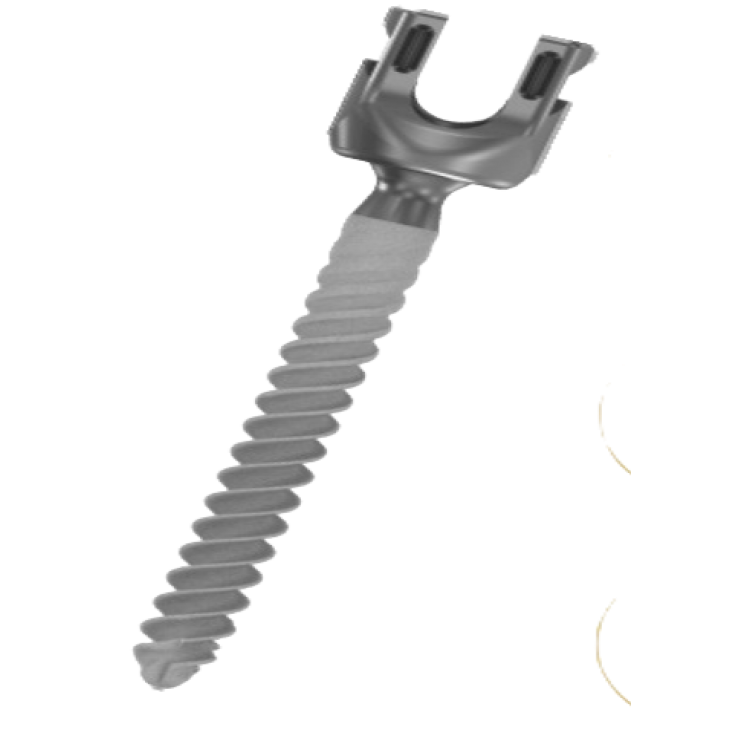

HA COATED POLYAXIAL SCREW

Ürün Genel Özellikleri

® HA Coated Pedicle Screw System is designed to meet the varying requirements of degenerative, trauma and deformity procedures. STYLESPINE features a cobalt chrome tulip, a titanium triple lead proximally tapered thread to deliver strength, stability and efficiency to all thoracolumbar constructs. The screws have hydroxyapatite coating applied to the threads, which largely consists of calcium and phosphorus, and is designed to enhance the amount of fixation possible between the pedicle screw and the surrounding bone in osteoporotic patients. The screws are supplied sterile, and are made from medical grade titanium or titanium alloy.
Hyrdoxyapatite Coating largely consists of Calcium and Phosphorus, promoting osteointegration between bone and implant. HA Coating adds approximately .18mm to major diameter and .25mm to minor diameter compared to standard Reform Screws
Titanium Nitrate Coated HA Taps are used when high bone density exists
Cobalt Chrome Tulip and Titanium Triple Lead, Proximally Tapered Thread deliver strength, stability and efficiency to all thoracolumbar constructs

DIMENSIONS	DIMENSIONS	DIMENSIONS	DIMENSIONS
Ø4,5 – 20mm Ø4,5 – 25mm Ø4,5 – 30mm Ø4,5 – 35mm Ø4,5 – 40mm Ø4,5 – 45mm Ø4,5 – 50mm Ø4,5 – 55mm Ø4,5 – 60mm	Ø5,5 – 25mm Ø5,5 – 30mm Ø5,5 – 35mm Ø5,5 – 40mm Ø5,5 – 45mm Ø5,5 – 50mm Ø5,5 – 55mm Ø5,5 – 60mm Ø5,5 – 65mm	Ø6,5 – 25mm Ø6,5 – 30mm Ø6,5 – 35mm Ø6,5 – 40mm Ø6,5 – 45mm Ø6,5 – 50mm Ø6,5 – 55mm Ø6,5 – 60mm Ø6,5 – 65mm	Ø7,5 – 35mm Ø7,5 – 40mm Ø7,5 – 45mm Ø7,5 – 50mm Ø7,5 – 55mm Ø7,5 – 60mm Ø7,5 – 65mm Ø7,5 – 70mm Ø7,5 – 80mm

Etiketler: HA COATED POLYAXIAL SCREW , SSHACPS001 , Lumbar Spine
